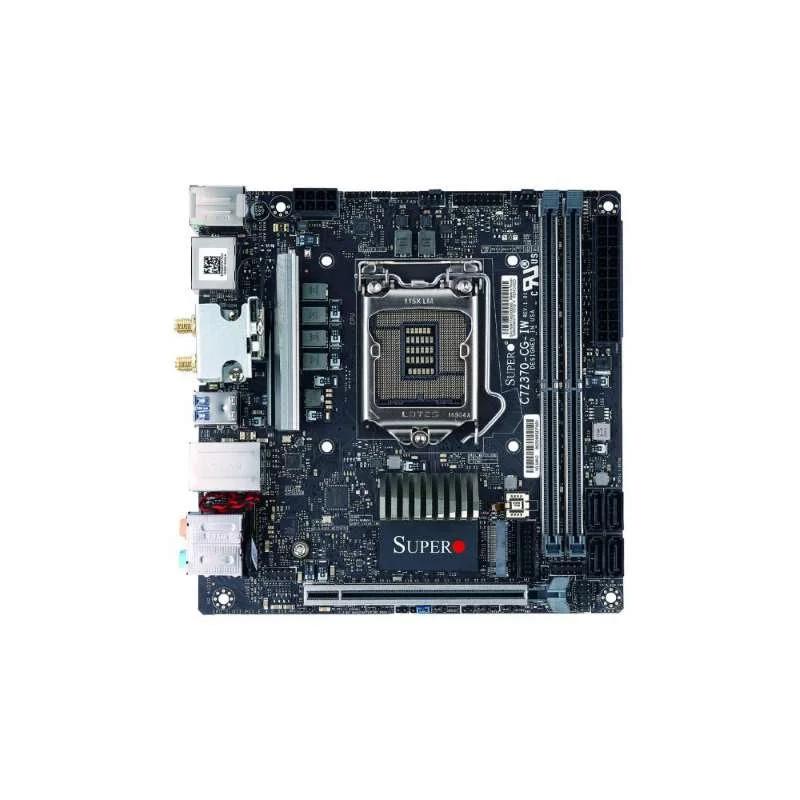

Placa mae supermicro z370 mini-itx - intel 8a. ger (1151)
Produto fora de estoque
Product SKU: C7Z370-CG-IW Form Factor: Mini-ITX Dimensions:6.75"x6.75" CPU Core / Cache: Intel LGA 1151(H4) 8th Gen Core i7/i5/i3 processors (up to 120W TDP) Memory Capacity: 2x 288-pin DDR4 DIMM slots Supports up to 32GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 2 DIMM slots Memory Type: Frequency up to DDR4 2666MHz DDR4 Non-ECC Un-buffered 288-pin (UDIMM) gold-plated DIMMs Supports Intel overclocking Extreme Memory Profile (XMP) DIMM (Up to 3733+MHz) DIMM Sizes: 16GB, 8GB, 4GB Memory Voltage: 1.2V Chipset: Intel Z370 Express Chipset On-Board SATA: SATA3.0 (6Gbps) via Intel Z370 Express Chipset 4x SATA (RAID 0, 1, 5, 10) On-Board Audio: Realtek ALC1220 7.1 HD Audio Network Controllers: Intel i219V Single Port Gigabit Ethernet and Wifi Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output USB: 6x USB 3.0 ports (4 rear, 2 via header) 1x USB 3.1 Type A port (rear) 1x USB 3.1 Type C port (rear) Input/Output Audio, Realtek ALC1220 7.1 HD Audio Keyboard/Mouse: PS/2 connector for mouse and keyboard Display: 1x HDMI 2.0 + 1x DisplayPort 1.2 Serial Port / Header: 1x COM port (header) Temperature: Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI PCI-Express: 1x PCIe 3.0 x16 slot 2x PCIe 3.0 x4 M.2 (2260/2280/22110)(M-key) BIOS Type: 128Mb SPI Flash EEPROM with AMI BIOS BIOS Features: DMI (SMBIOS) 2.7 ACPI 5.0 USB Keyboard support Software: SuperDoctor V Watch Dog Power Configurations: ACPI Power Management Keyboard Wakeup from Soft-Off Power-on mode for AC power recovery Voltage: +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT FAN: Total of 2 fan headers supporting up to 2 fans 2 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors LED: Suspend static indicator LED Other Features: Chassis intrusion detection Chassis intrusion header RoHS Homologação Anatel: 063311603111
Mostrar mais- ChipsetIntel z370
- Homologação anatel063311603111
- MarcaIntel
- Capacidade máxima de memória32 gb
- EntidadePlaca mãe
- Socket cpuLga 1151
- Slot de memóriaDdr4
