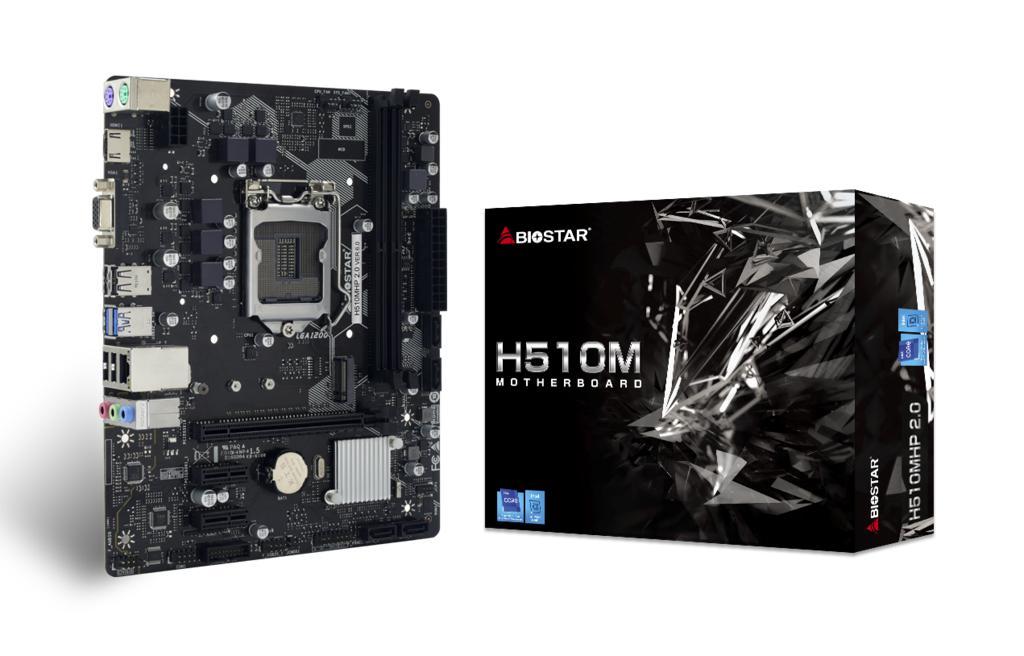

Placa Mae Biostar H510Mhp 2.0 1200 Ddr4
Cashback até R$ 153,59
R$ 1.279,98
Com os 12% de cashback sai por R$ 1.126,39
Vendido por Olist
1
1 disponívelR$ 1.279,98
Entrega
-Chipset intel h510 Cpu support socket 1200 for 10th / 11th gen intel core(tm), pentium and celeron processors Memory supports dual channel ddr4 1866/ 2133/ 2400/ 2666/ 2933/ 3200 2 x ddr4 dimm memory slot, max.
Supports up to 64 gb memory Each dimm supports non-ecc 4/8/16/32gb ddr4 module Integrated video supports dx12 Supports hdcp Storage 4 x sata iii connector (6gb/s) 1 x m.2 (m key) socket: Supports m.2 type 2242/ 2260/ 2280 ssd module.
Supports pcie 3.0 x 4 (32gb/s) & sata iii (6gb/s) ssd When using sata ssd module on pcie-m21 slot, the sata1 connector will be disabled.
Specifications vary by cpu types Lan intel i219v 10/ 100/ 1000 mb/s auto negotiation, half / full duplex capability Audio codec realtek alc897 7.1 channels, high definition audio Usb 4 x usb 3.2(gen1) ports (2 on rear i/os and 2 via internal headers) 6 x usb 2.0 ports (4 on rear i/os and 2 via internal headers) Expansion slot 2 x pcie 3.0 x1 slot 1 x pcle 3.0/4.0 x16 slot The pcle 4.0 only depends on rocket lake cpus.
Specifications vary by cpu types Rear i/o 1 x ps/2 keyboard 1 x ps/2 mouse 1 x hdmi port 1 x vga port 2 x usb 3.2 (gen1) ports 4 x usb 2.0 ports 1 x lan port 3 x audio jack Internal i/o 4 x sata iii connectors (6gb/s) 1 x usb 2.0 header (each header supports 2 usb 2.0 ports) 1 x usb 3.2 (gen1) header (each header supports 2 usb 3.2 (gen1) ports) 1 x 8-pin power connector 1 x 24-pin power connector 1 x cpu fan connector 1 x system fan connector 1 x front panel header 1 x front audio header 1 x clear cmos header 1 x com port header H/w monitoring cpu / system temperature monitoring Cpu / system fan monitoring Smart / manual cpu fan control Cpu/ddr voltage monitoring Dimension micro atx form factor dimension: 18.5cm x 22.6cm ( w x l ) Os support supports windows 10 (64bit) / 11(64bit) biostar reserves the right to add or remove support for any os with or without notice.
Bundle software bullguard Accessories 2 x sata cable 1 x i/o shield 1 x dvd driver 1 x quick guide
