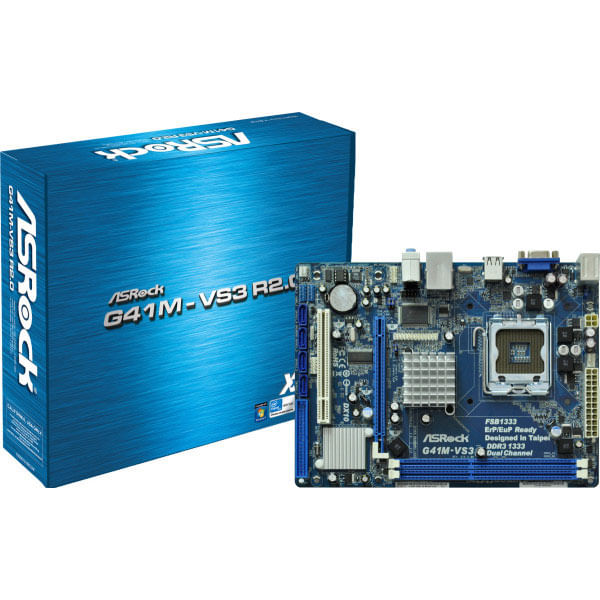

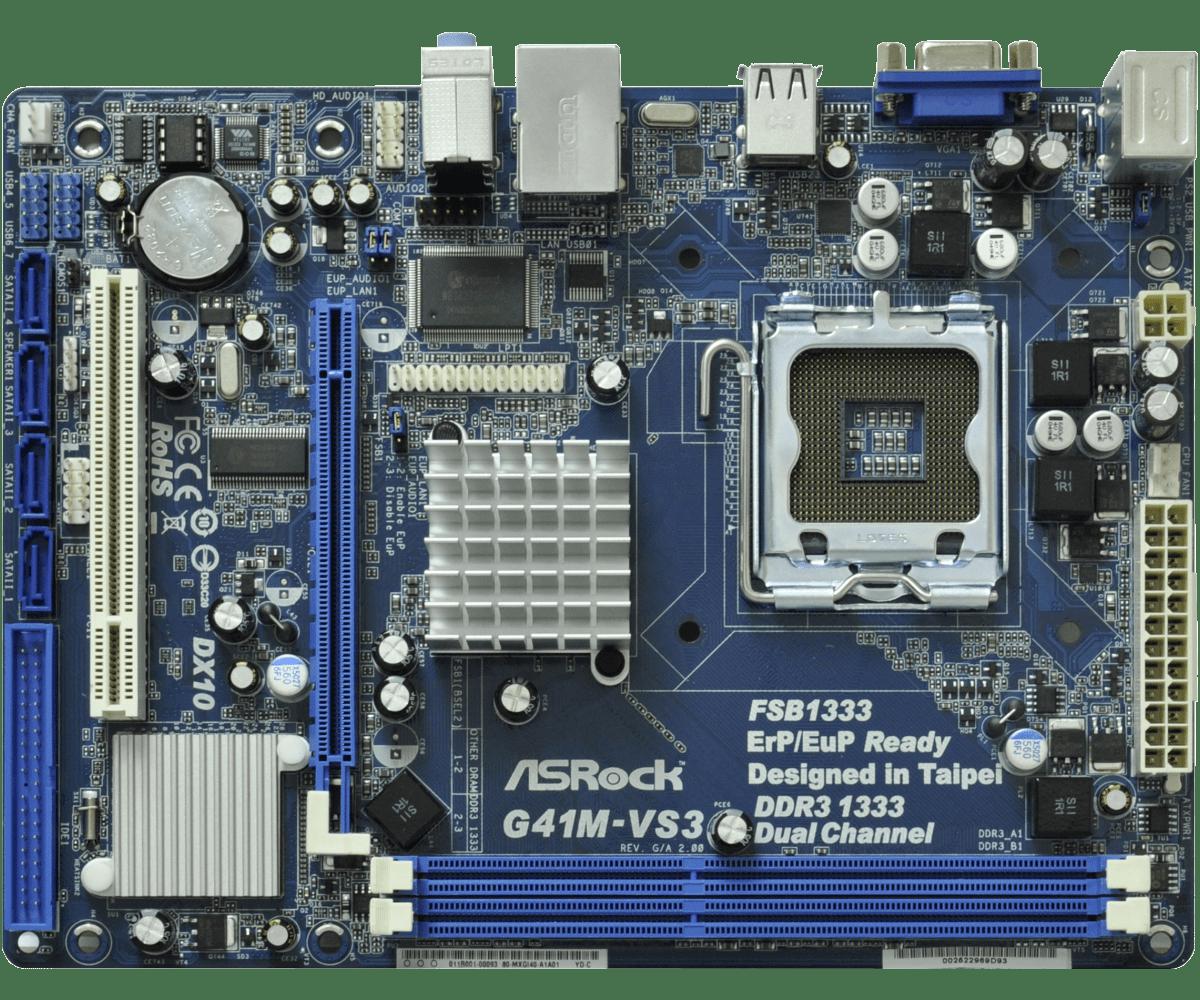

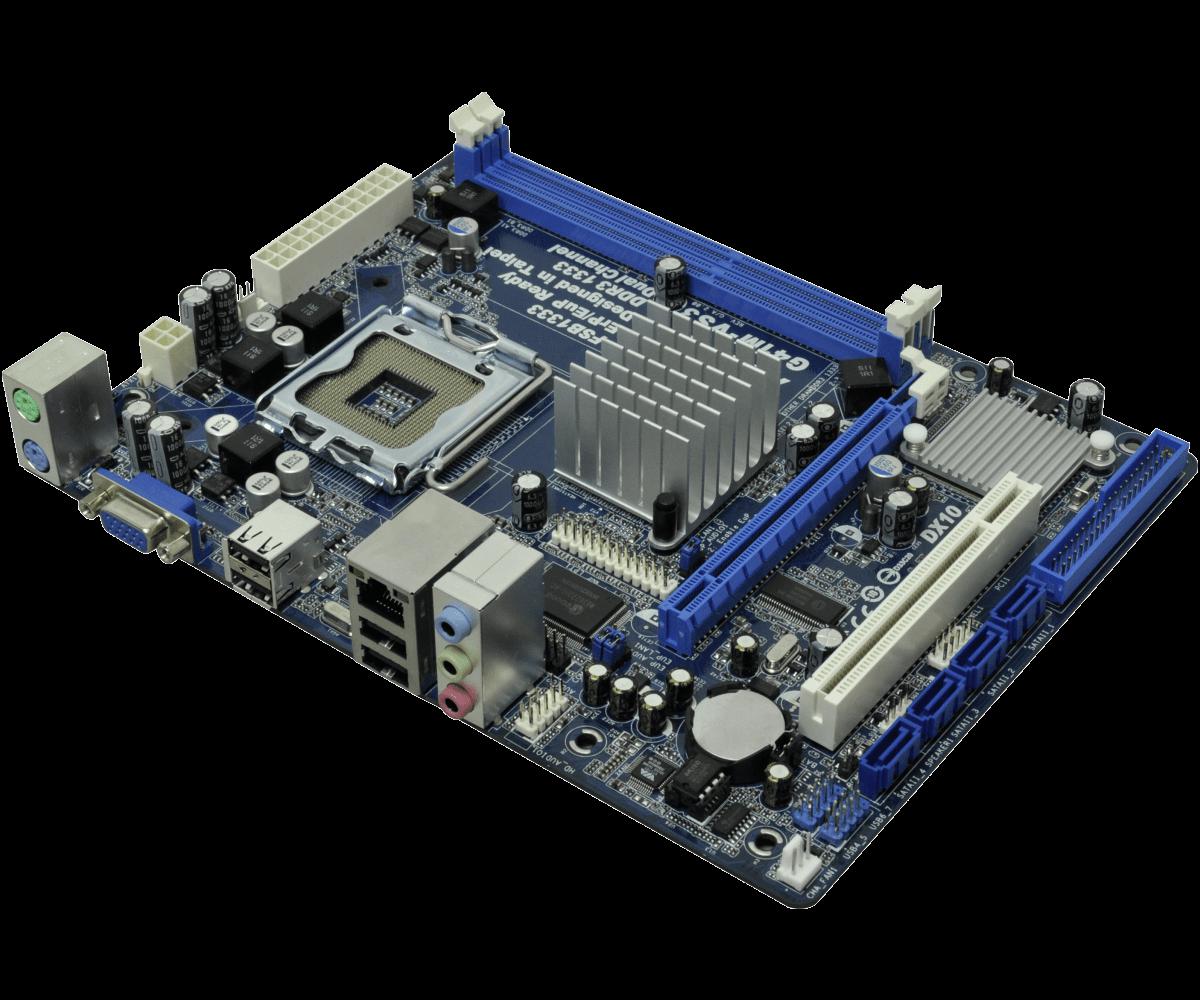

Placa Mãe AsRock G41M-VS3 R2.0 Socket 775
Produto fora de estoque
Placa Mãe AsRock G41M-VS3 R2.0 Socket 775 G41M-VS3 R2.0 Supports FSB1333/1066/800/533 MHz CPUs Supports Dual Channel DDR3 1333(OC) Intel Graphics Media Accelerator X4500, Pixel Shader 4.0, DirectX 10, Max.
shared memory 1759MB Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies Supports Instant Boot, Instant Flash, OC DNA, OC Tuner, IES, APP Charger Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar CPU - LGA 775 for Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium Dual Core / Celeron Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors - Supports FSB 1333/1066/800/533 MHz - Supports Hyper-Threading Technology - Supports Untied Overclocking Technology - Supports EM64T CPU Chipset - Northbridge: Intel G41 - Southbridge: Intel ICH7 Memory - Dual Channel DDR3 memory technology - 2 x DDR3 DIMM slots - Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory - Max.
capacity of system memory: 8GB Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS.
For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
In order to maximize the system memory, please install 4GB memory module with 16 cells or 2GB memory modules with at least 8 cells.
BIOS - 8Mb AMI Legal BIOS - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - SMBIOS 2.3.1 Support - VCCM, NB, VTT, GTLRef Voltage Multi-adjustment Graphics - Intel Graphics Media Accelerator X4500 - Pixel Shader 4.0, DirectX 10 - Max.
shared memory 1759MB - Supports D-Sub with max.

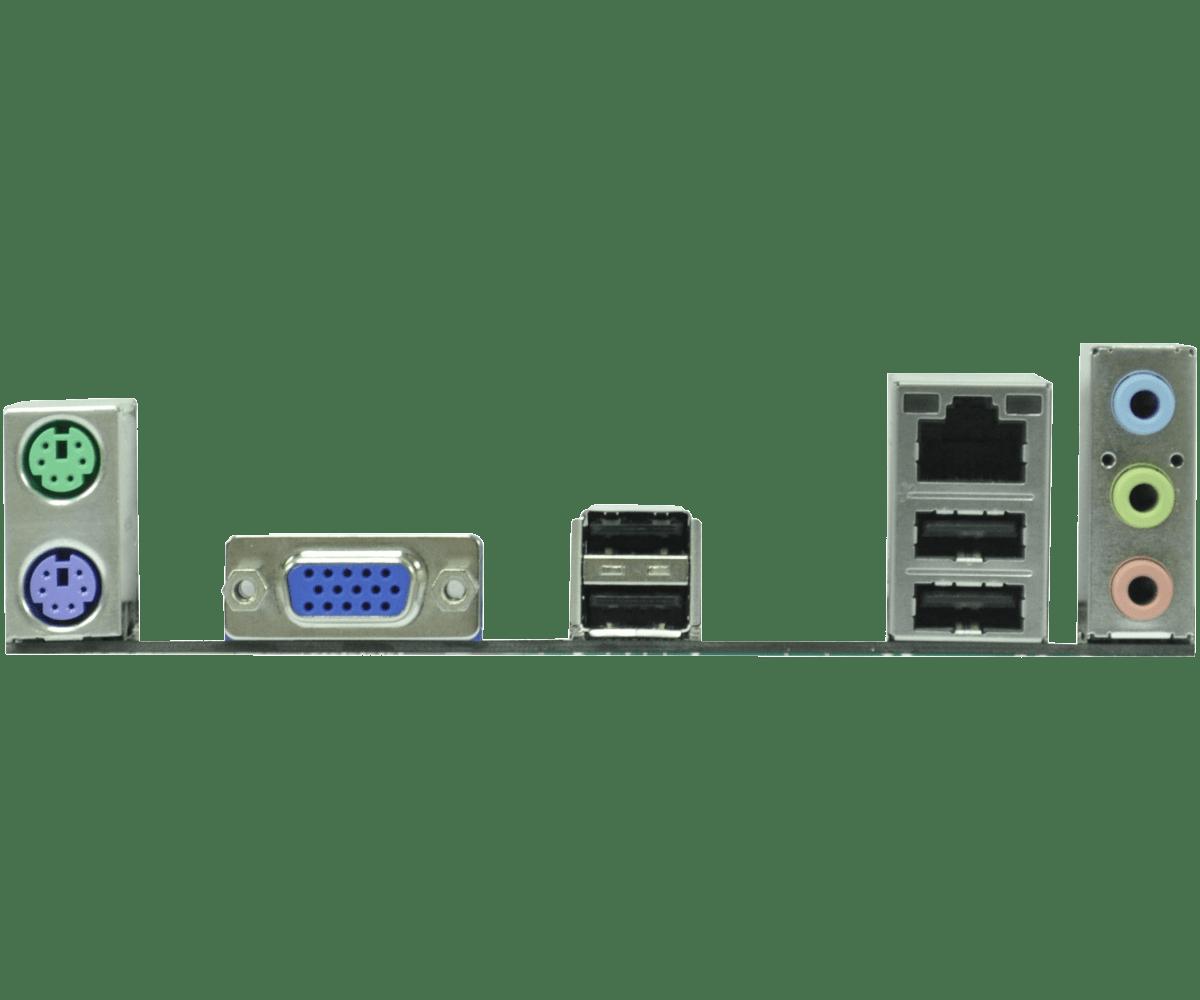

resolution up to 2048x1536 75Hz Audio - 5.1 CH HD Audio (Realtek ALC662 / VIA VT1705 Audio Codec) LAN - Atheros PCIEx1 LAN AR8152 - Speed: 10/100 Ethernet - Supports Wake-On-LAN Slots - 1 x PCI Express x16 slot - 1 x PCI slot Connector - 4 x Sata2 3.0 Gb/s connectors (No support for Raid and Hot Plug functions) - 1 x ATA100 IDE connector (supports 2 x IDE devices) - 1 x Print port header - 1 x COM port header - CPU/Chassis FAN connector - 24 pin ATX power connector - 4 pin 12V power connector - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports) Rear Panel I/O I/O Panel - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x VGA Port - 4 x Ready-to-Use USB 2.0 Ports - 1 x RJ-45 LAN Port with LED (ACT / LINK LED and Speed LED) - HD Audio Jack: Line in / Front Speaker / Microphone Unique Feature - ASRock OC Tuner - Intelligent Energy Saver - Instant Boot - ASRock Instant Flash - ASRock OC DNA - ASRock APP Charger - SmartView - ASRock XFast USB - Hybrid Booster: - CPU Frequency Stepless Control - ASRock U-COP - Boot Failure Guard (B.F.G.) Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x Sata Data Cables Hardware Monitor - CPU Temperature Sensing - Chassis Temperature Sensing - CPU Fan Tachometer - Chassis Fan Tachometer - CPU Quiet Fan - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Form Factor - Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm OS - Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant Certifications - FCC, CE - ErP/EuP Ready (ErP/EuP ready power supply is required)
Mostrar mais- MarcaAsrock
- EntidadePlaca mãe
- Socket cpuLga 775
- Slot de memóriaDdr3
